A fire alarm control panel (FACP) forms the central link of a fire alarm panel (FACP) and controls all its functions.

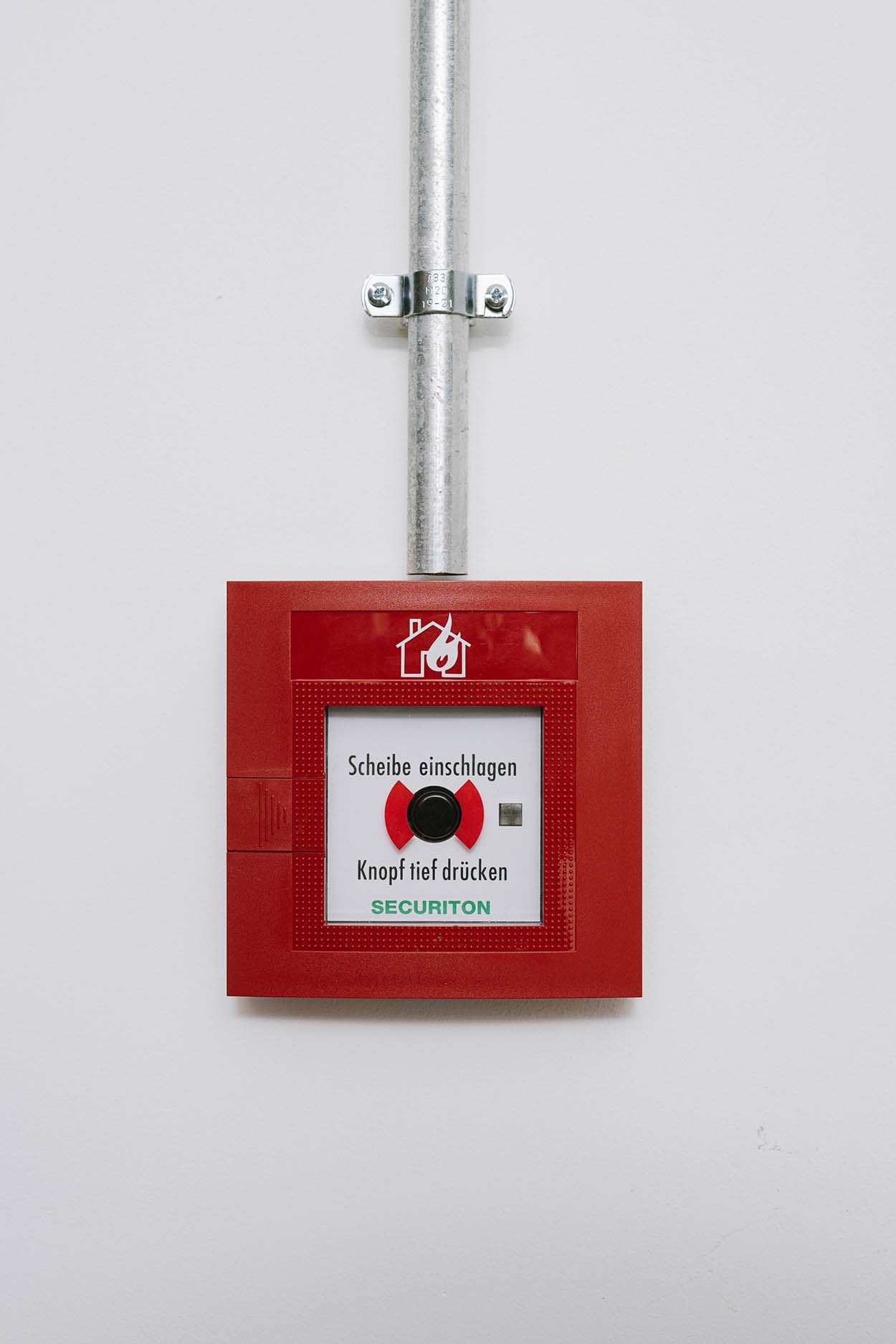

Tasks of a fire alarm control panel
A fire alarm control panel detects a fire (via various fire detectors in the building) and automatically alerts persons present. Depending on the system's configuration, it also independently alerts the fire brigade and controls other fire protection equipment - e.g. fire doors, smoke extraction systems or extinguishing systems.
In detail, a FACP ensures the following measures in the building:
- Closing of fire protection closures
- Opening smoke extraction systems
- Activation of sirens and voice announcements
- Activation of escape route lighting
- Activation of extinguishing systems
- Decommissioning lifts (exception: fire brigade lifts)
- Decommissioning of machines
Furthermore, a fire alarm control panel (FACP) provides important information so that firefighting operations can be carried out quickly and effectively. For this purpose, the first and last detector to be triggered can be identified at a glance on the display of a fire alarm control panel. Based on this, the rescue forces can determine the direction of fire spread and determine a suitable attack route.
Good to know: The fire alarm control panel (FACP) can be accessed by the fire brigade at any time, as the keys for the FACP are stored in a fire brigade key depot.

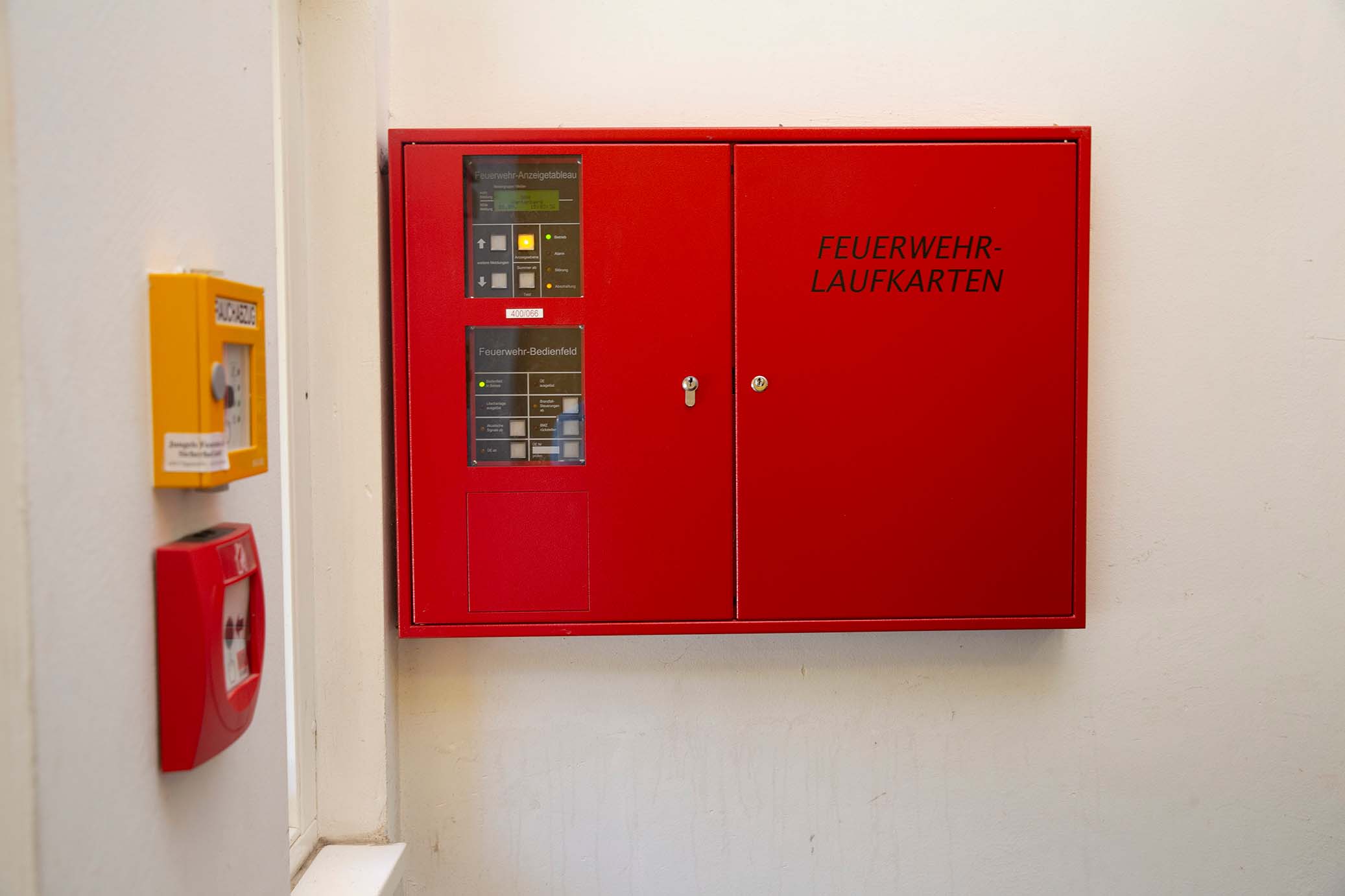

Specifications for a FACP
The planning, installation and commissioning of a fire alarm panel is only permitted by a specialist company certified in accordance with DIN 14675. In addition, the (VdS) guidelines, recognised rules of technology and the connection conditions of the responsible fire brigade must be observed.
Important: A safety power supply is mandatory for every FACP. The following specifications apply:
- 4 hours in case of availability of a standby power system, stocking of spare parts and permanent availability of the specialist company carrying out the maintenance.
- 30 hours in case of forwarding of the fault message to a permanently manned office and availability of the maintenance company within 24 hours
- 72 hours in all other cases

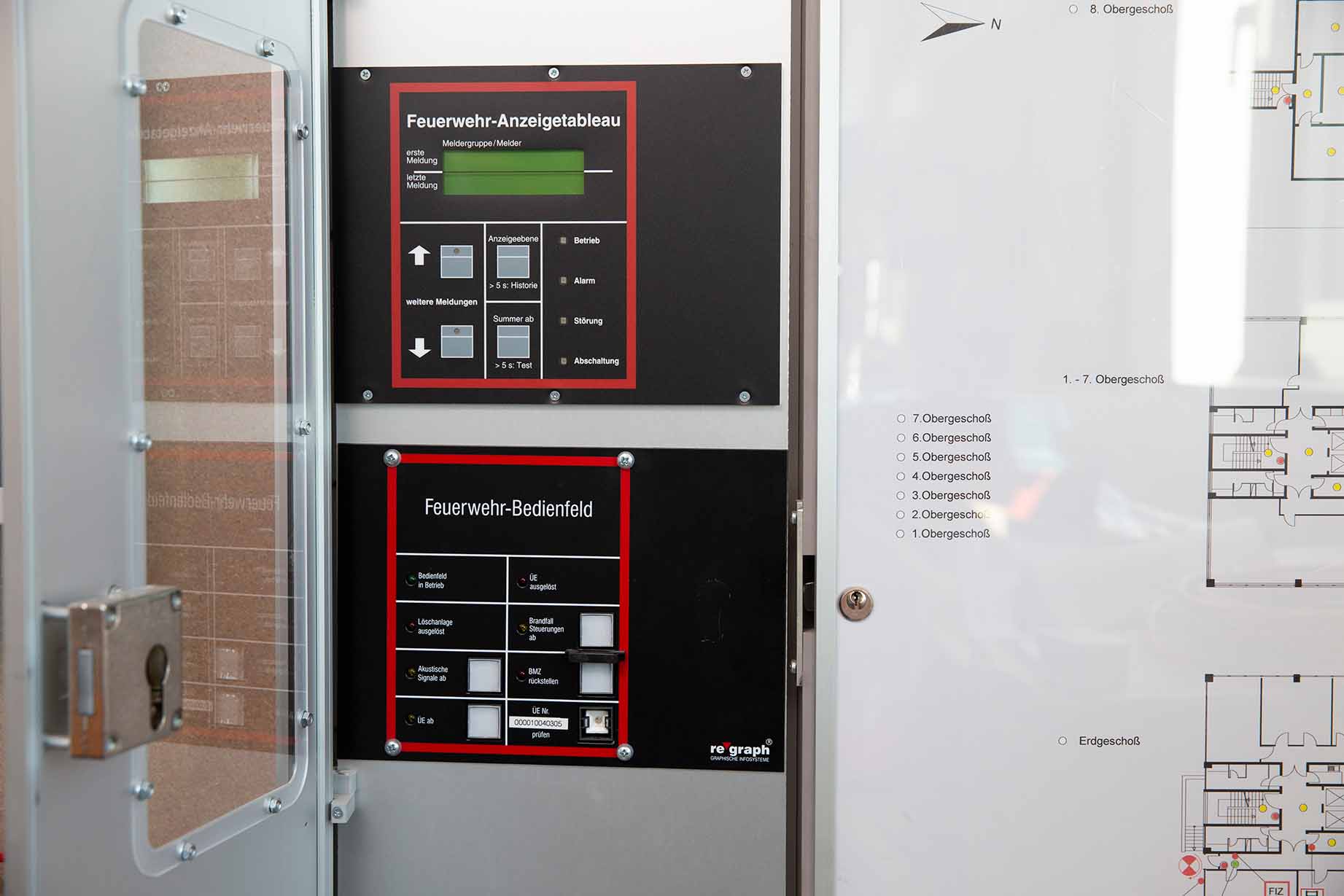

Fire alarm systems basically consist of a fire alarm control panel, an (emergency) power supply and fire detectors. These check an area to be monitored for a specific - or several combined - fire criteria (heat, smoke, etc.). Fire alarm systems that automatically alert the fire brigade also have a fire brigade control panel as well as a fire brigade display panel with which the emergency services can view all important information and carry out basic controls. The size of a fire alarm control panel varies greatly depending on the manufacturer and the overall size of the systems.
Important: A fire alarm control panel must protect against fire in the building. The installation location of a fire alarm control panel is therefore of particular relevance.
A safe installation site is possible via a fire load-free, dry and sufficiently lit room or a fire protection housing. These must also be equipped with a fire detector. In addition, the fire alarm control panel must be marked with an appropriate sign.

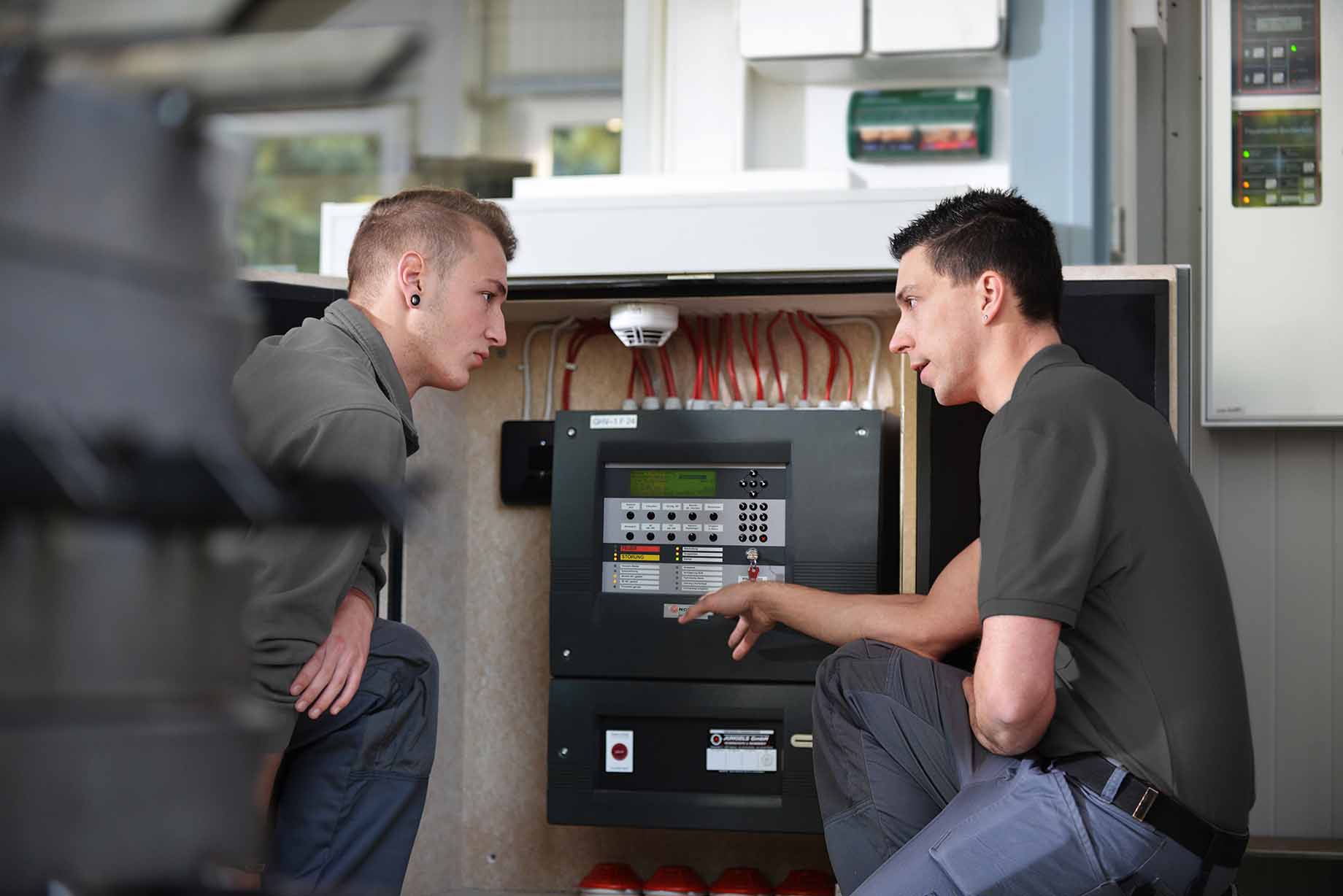

CWS is a certified installer
CWS Fire Safety is a certified installer for fire alarm panels according to DIN 14675 and VdS. Experienced experts plan, install and maintain fire alarm panels throughout Germany.
CWS experts support you with:
- Planning the system according to building size/use as well as fire hazards and number of persons
- Installation and commissioning - incl. coordination with the fire brigade & preparation of fire brigade maps
- Annual maintenance and quarterly inspection
Contact us for a non-binding consultation.
